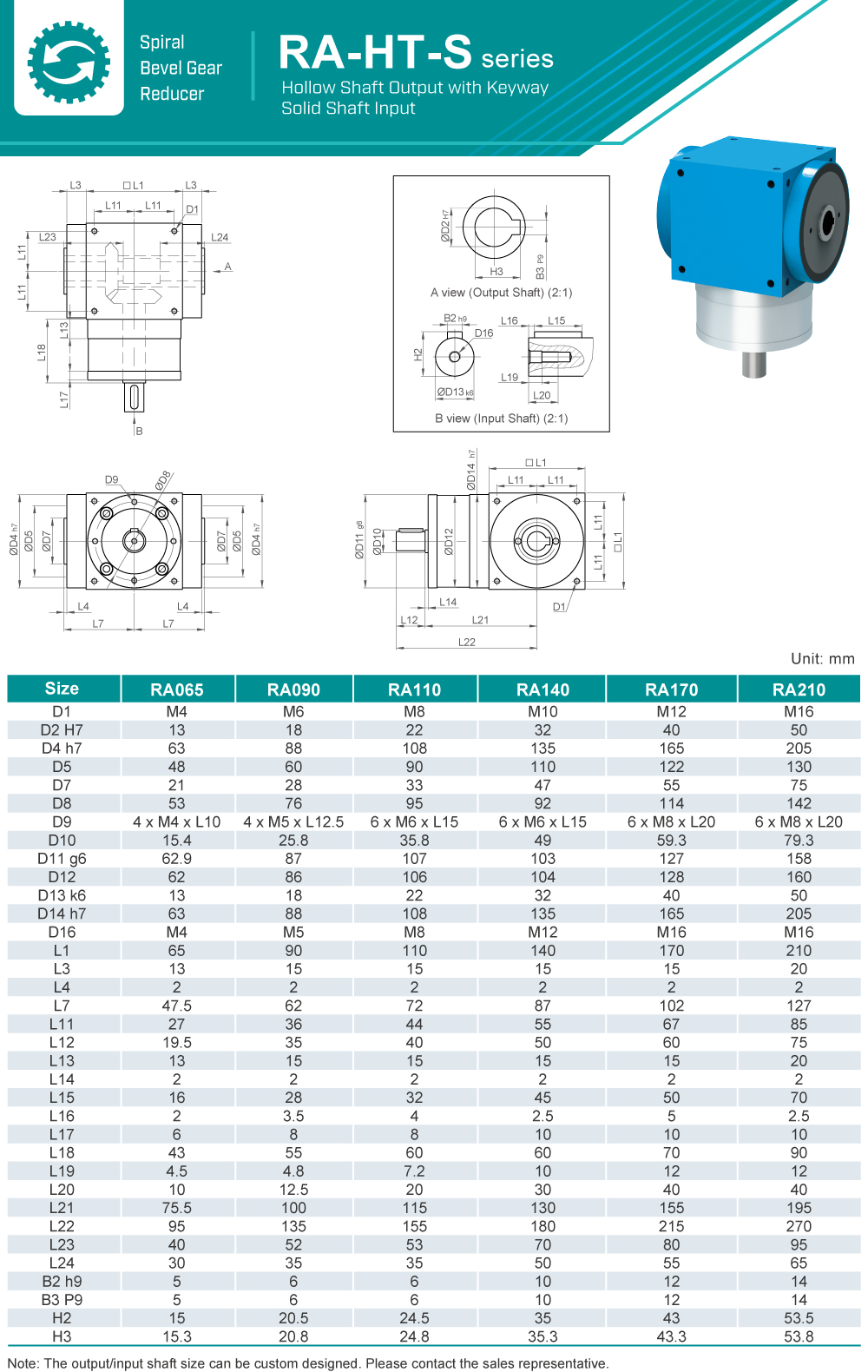

Spiral bevel gearbox RA-HT-S series
Let us help you make your design a success Suitable for precision positioning in various kinds of automation equipment.- Size 65 / 90 / 110 / 140 / 170 / 210
- Hollow shaft output / Shaft input
- Ratio 1:1 / 2:1 / 3:1 / 4:1 / 5:1
- Backlash 6 - 9 arc min
- Noise 68- 80 dB
- Operating temperature -15°C ~ +90°C
- Efficiency ≥ 98%
- International Protection IP64
