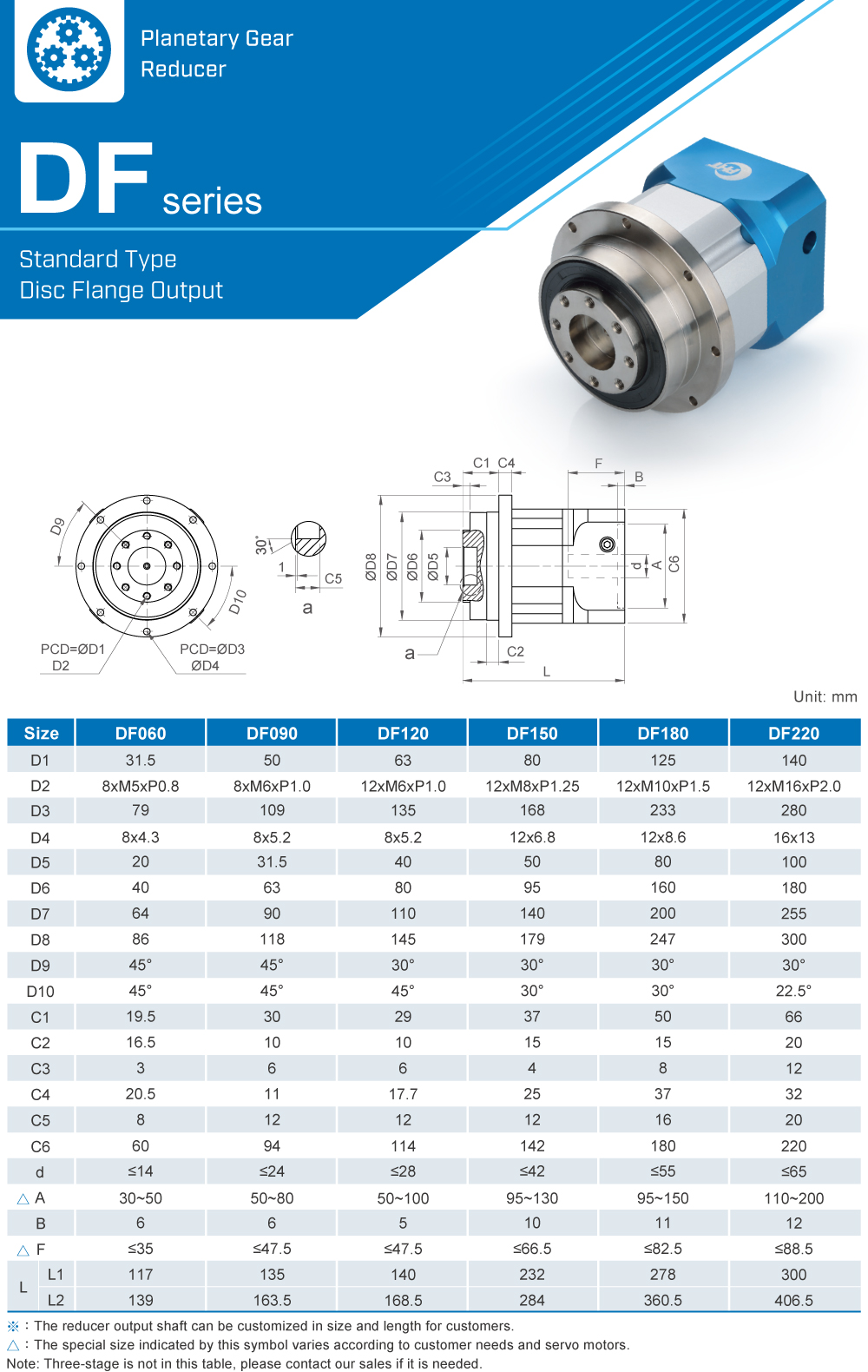

Planetary gearbox DF series
Let us help you make your business a success With rotating flange output, allows machine elements such like pinions, pulleys and rotary index tables to be easily connected directly to the output.

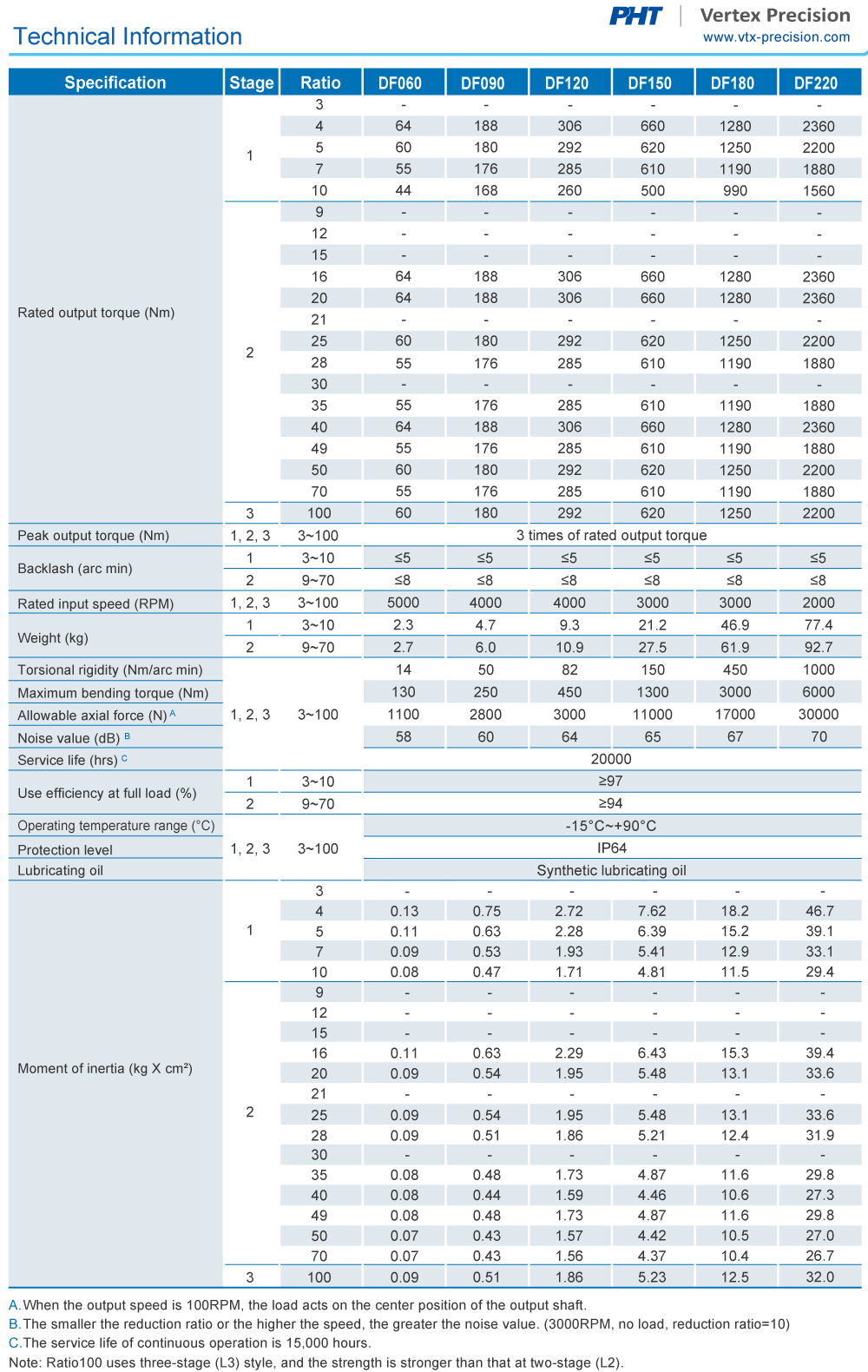

- Size 60 / 90 / 120 / 150 / 180 / 220
- Standard type (spur)
- Disc-flange output
- Backlash 5 - 8 arc min
- Noise 58 - 70 dB
- Operating temperature -15°C ~ +90°C
- Efficiency 94% - 97%
- International Protection IP64
