Planetary gearbox DML series
Let us help you make your business a success The gearbox and the inner gear ring adopt an integrated structure, which has better torsional rigidity, and the installation hole at the output end is perforated type.

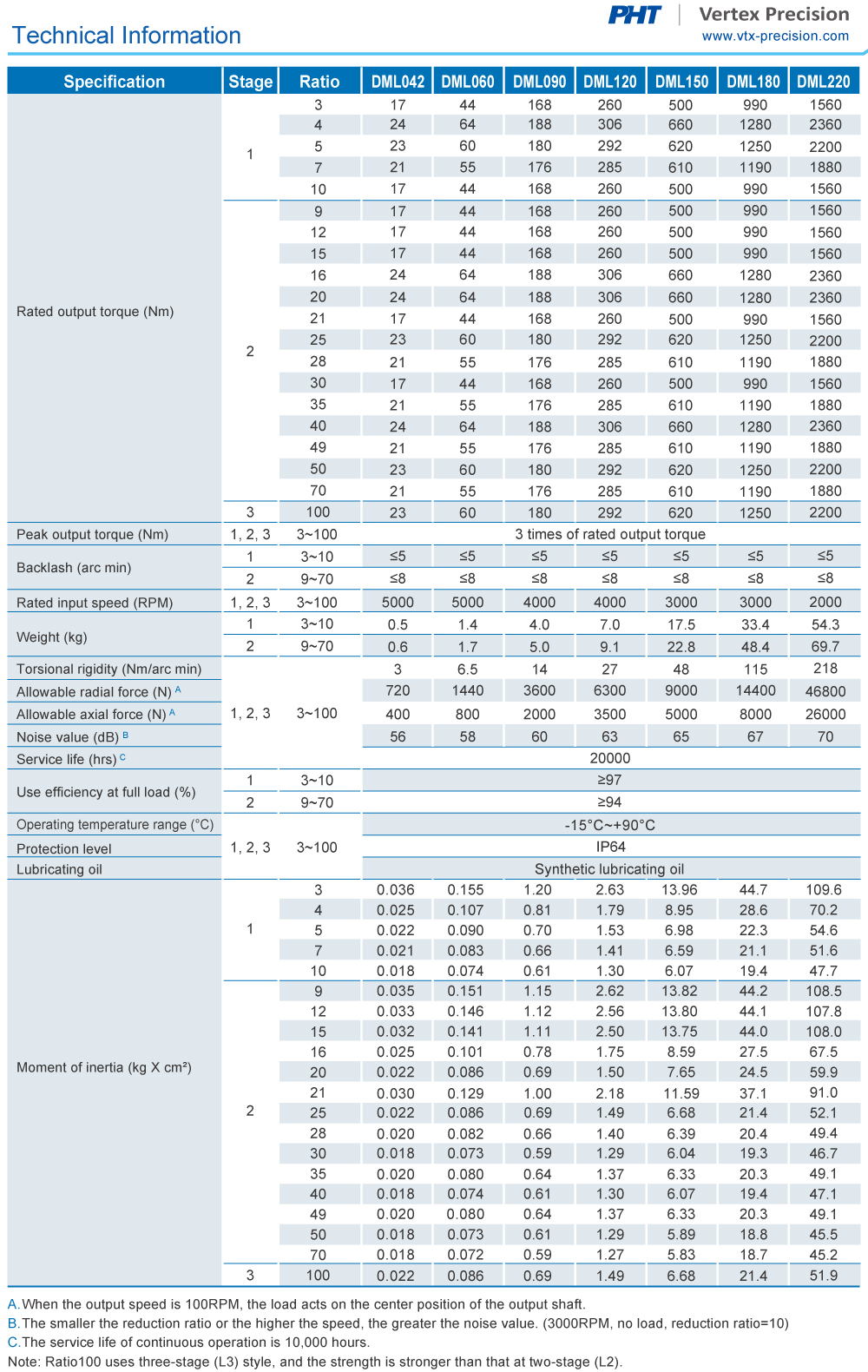

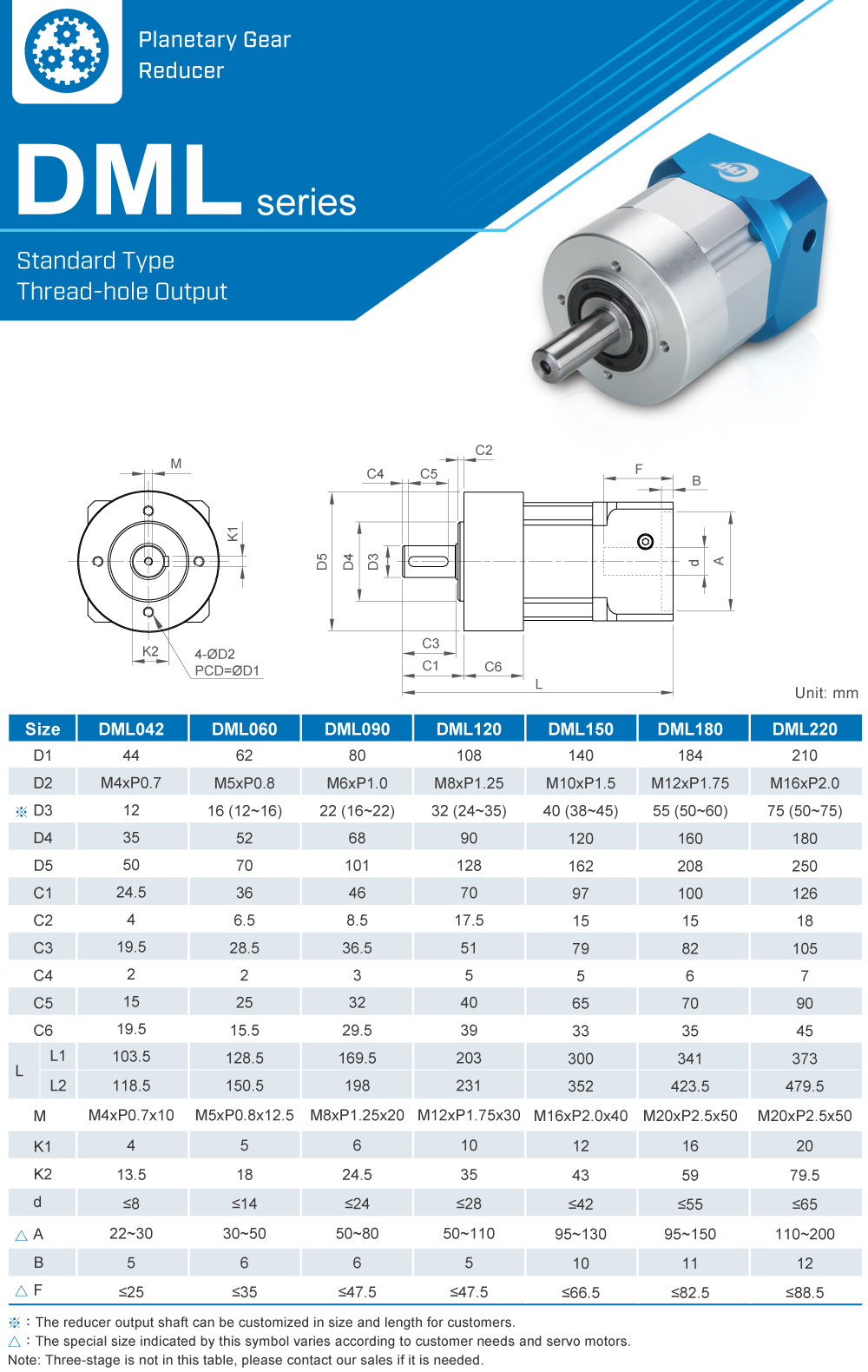

- Size 42 / 60 / 90 / 120 / 150 / 180 / 220
- Standard type (spur)
- Thread-hole output
- Backlash 5 - 8 arc min
- Noise 56 - 70 dB
- Operating temperature -15°C ~ +90°C
- Efficiency 94% - 97%
- International Protection IP64
