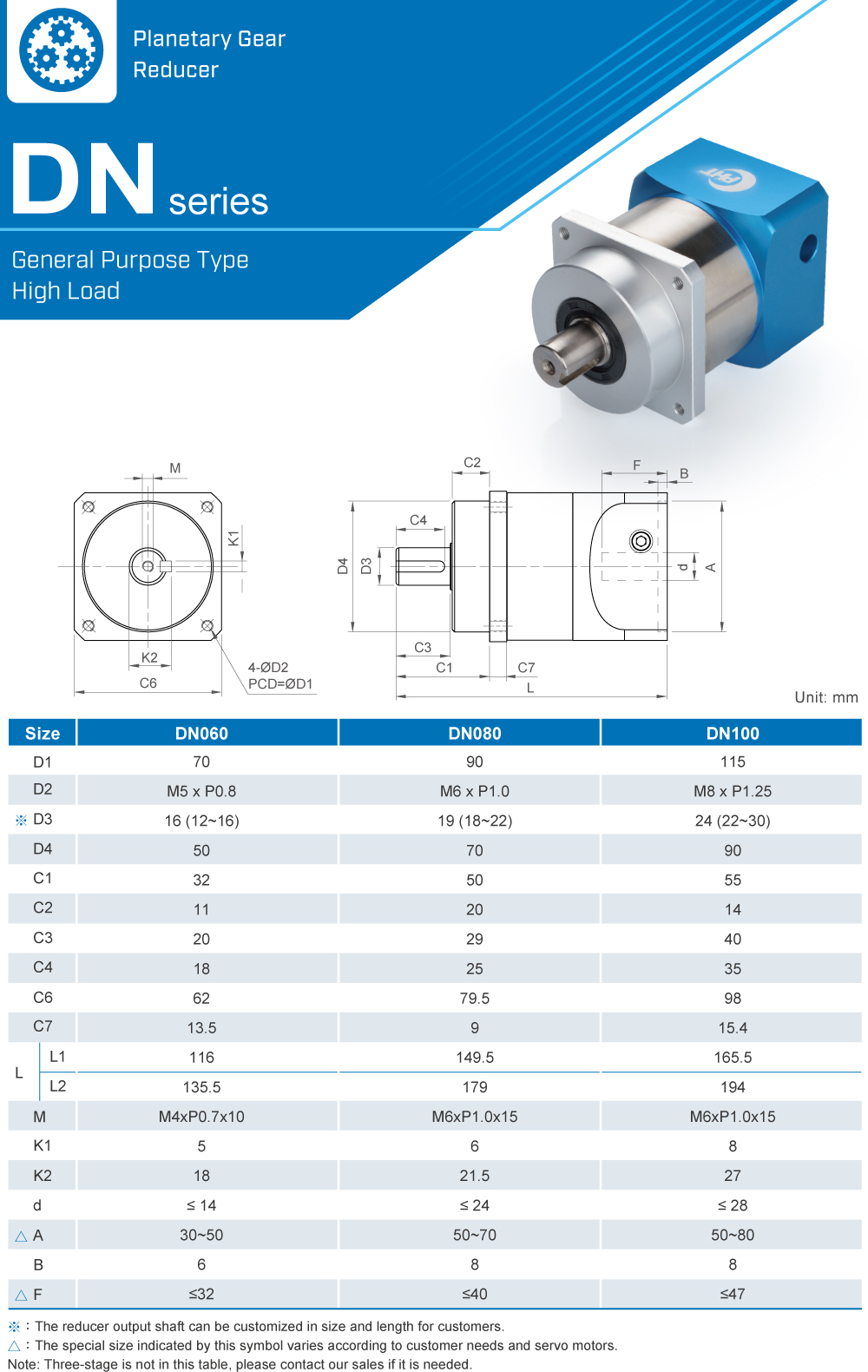

Planetary gearbox DN series
Let us help you make your business a success With the characteristics of high radial & axial force, it can provides excellent performance for diverse applications.
- Size 60 / 80 / 100
- General purpose (spur)
- Thread-hole output
- Backlash 10 - 12 arc min
- Noise 58 - 60 dB
- Operating temperature -15°C ~ +90°C
- Efficiency 94% - 97%
- International Protection IP64
